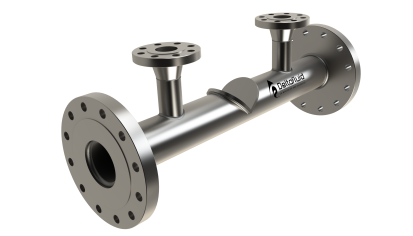

Wedge flowmeter
Suitable for low flow rates and fluids with impurities
GENERAL DATA
- Standards: ISO 5167-1 & 6 or R.W. MILLER.
- Solder (BW) or flanged connection
- Material: Standard: 304L / 316L stainless steel, others according to your application.
- Fluid: liquid, gas, steam.
- Diameter of pipes: from 12.5 to 600 mm.
- Bi-directional measurement possible.
- Accuracy: 2% of max flow.
- Repeatability of the measure: 0.1%
| ISO 5167-1&6 | R.W. MILLER | ||
|---|---|---|---|
| ReD | Reynolds number in pipework | 1.104 ≤ ReD ≤ 9.106 | ReD > 500 |
| D | Pipe interior diameter | 50 mm ≤ D ≤ 600 mm | 12,5 mm ≤ D ≤ 600 mm |
| H | Orifice height | H > 10 mm | H > 12,5 mm |
| H/D | Ratio of height | 0,2 ≤ H/D ≤ 0,6 | 0,2 ≤ H/D ≤ 0,5 |
| β coin | β equivalent | 0,377 ≤ β ≤ 0,791 | 0,30 ≤ β ≤ 0,71 |
